DuitNow Payments App

01The problem

DuitNow QR and DuitNow Transfer are Malaysia's instant-payment rails, and they punish guesswork: a QR payload has to satisfy EMVCo's tag-length-value structure and a CRC checksum, money has to reconcile to the cent, and no debit should ever happen without the payer's consent. I built a working Flutter client in a single overnight push to hold exactly that bar — not to mock a happy path, but to treat money and identity the way a real wallet has to.

02A look at the app

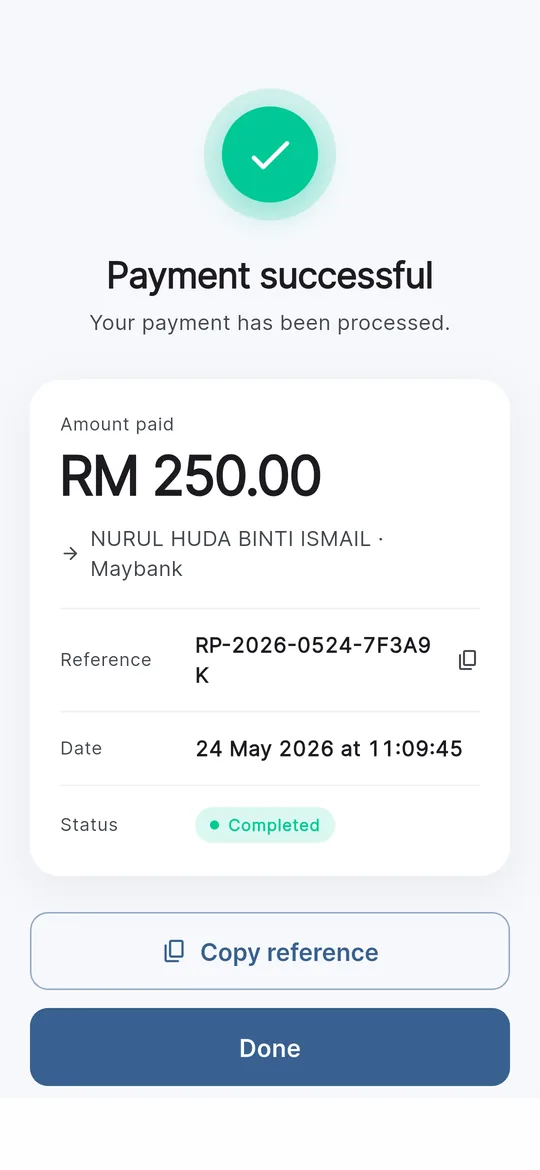

HomeSendConfirmSuccess

03What I built

• Scan a DuitNow QR, parse its EMVCo tag-length-value payload, recompute the CRC16-CCITT-FALSE checksum, and refuse any code whose checksum doesn't match — verified against a real CIMB OCTO production QR, not a synthetic fixture — then show an explicit confirmation before any debit.
• Compose DuitNow transfers three ways — bank account (validated against per-bank account-length rules across six banks), phone number (E.164), or national ID (MyKad, checked against the 12-digit format and state-code table) — each on its own validation path before the flow proceeds.
• Gate every money-moving action behind device biometrics — Face ID, fingerprint, or PIN — through local_auth.
• Carry the payment as typed state through a Riverpod provider, never through route parameters, so amount and recipient live in typed app state instead of a tamperable URL.
• Keep money as integer cents from parse to display; floating-point currency never enters the system.

04Key decisions

05Checks and tests

• 40 parser tests across 7 groups cover EMVCo TLV parsing and CRC16-CCITT-FALSE checksum verification.
• Checksum fixtures were derived by hand — the EMVCo reference ("123456789" → 0x29B1) plus hand-computed payloads — so the parser is pinned to known-good values, not to its own output.
• Separate suites cover currency math, payment execution, and widget behaviour; validators cover MyKad, E.164 phone numbers, and per-bank account formats.
• 71 tests in total — 40 parser, 21 currency, 4 payment-execution, 6 widget — so a regression names exactly which layer broke.

06Code sample

/// Every EMVCo QR payload ends with a CRC16-CCITT-FALSE checksum
/// over the preceding bytes, including the "6304" tag and length.
/// We recompute it and refuse to parse a code whose checksum is wrong.
int crc16(List<int> data) {
  var crc = 0xFFFF;                 // CCITT-FALSE initial value
  for (final byte in data) {
    crc ^= byte << 8;               // fold next byte into the high byte
    for (var i = 0; i < 8; i++) {   // then process it one bit at a time
      crc = (crc & 0x8000) != 0     // is the top bit set?
          ? (crc << 1) ^ 0x1021     //   yes: shift out, then XOR the polynomial
          : crc << 1;               //   no:  just shift
      crc &= 0xFFFF;                // stay 16-bit (Dart ints are 64-bit)
    }
  }
  return crc;
}

07Trade-offs

• This is a demo on a mock backend, by design. Going live on DuitNow needs a PayNet partnership agreement and sandbox access — a commercial gate, not a coding one — so I recorded that as an ADR instead of faking live rails.
• The mock transfer backend declines roughly one in ten attempts on an injectable random, so the failure path is exercised honestly rather than always showing success.
• Payment-screen errors are intentionally non-revealing — a deliberate trade of user-facing diagnostics for not leaking why a payment failed.

08Result

A test-backed DuitNow client built to be checked, not trusted: a real CIMB production QR parsed and checksum-verified, integer-cent math end to end, typed failures on every fallible path, and biometrics before any debit. Built in one overnight push — honest about what's mocked, rigorous about what isn't.

09What I would improve next

• Finish the native screenshot block — the Dart guard is wired and called, but the Android/iOS platform side is still stubbed, so it does not yet block on a real device.
• Add mocked bank adapters so more transfer outcomes — limits, rejections, timeouts — can be driven end to end.
• Add receipt and transaction-history screens without widening the sensitive surface area.
